Concrete
3D Printing Systems
Modular. Scalable. Site-Ready.
System Overview

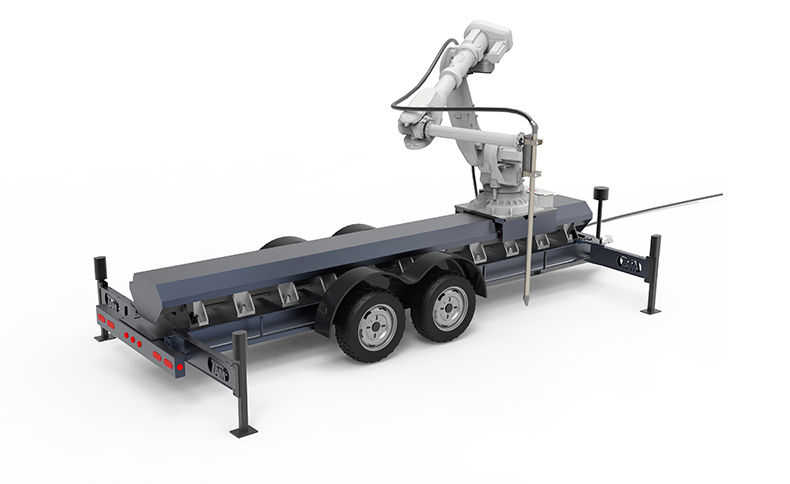

Robot
The system utilizes an ABB industrial robot, available with or without a linear track, fully configured for concrete 3D printing.
It provides high accuracy, continuous extrusion capability, and reliable performance, enabling complex geometries and consistent production in demanding site conditions.
3DCP-2K Nozzle System
The 3DCP-2K Nozzle System features an integrated 2-component (2K) dynamic mixer for uniform material blending at the point of extrusion.
Dual side-mounted injectors enable independent dosing of accelerators, additives, pigments, or surface treatments.
Interchangeable nozzle tips in multiple sizes allow precise control of extrusion width, layer height, and surface finish, ensuring adaptability to various print geometries and quality requirements.
Machine User Interface (MUI) – Nozzle &
Pump Control
The MUI is the central control system for
the concrete pump, additive pumps, and nozzle assembly. It allows real-time control of water flow, accelerator dosing, pressure, and temperature.
Two 20 L stainless steel tanks with continuous dosing pumps support additives and accelerators.
Remote access enables live monitoring, system operation, and automatic production data logging for full traceability and quality control.
3DCP Concrete Pump System
The 3DCP Concrete Pump is designed for continuous and stable concrete 3D printing.
It mixes dry concrete with automatically controlled water dosing, delivering material to the nozzle through a reinforced hose.
The system ensures constant flow, stable pressure, and uninterrupted extrusion, with integrated pressure monitoring for consistent print
quality and system protection.
Book a Live Demonstration
Specification Overview
Concrete Pump
Robotic System & Nozzle
Machine User Interface (MUI)
Nozzle & Pump Control System
The Machine User Interface (MUI) serves as the central control and monitoring platform for the entire 3D concrete printing system, including:
-
Concrete pump
-
Accelerator pump
-
Nozzle system
Through the MUI, operators can:
-
Control water flow rate
-
Regulate accelerator and additive dosing
-
Monitor material pressure and temperature in real time
“Fully designed, fabricated and integrated by TamVinci”

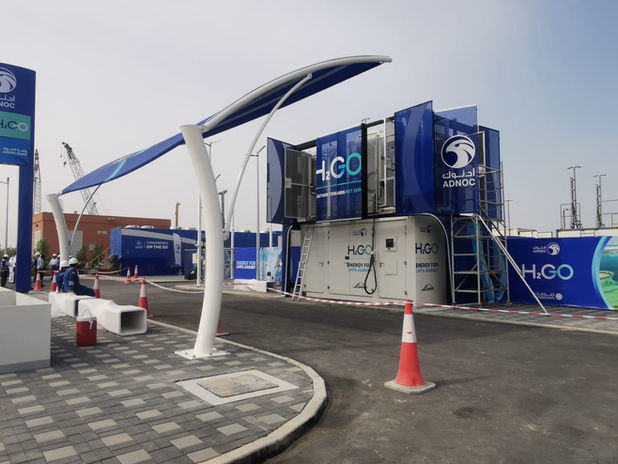

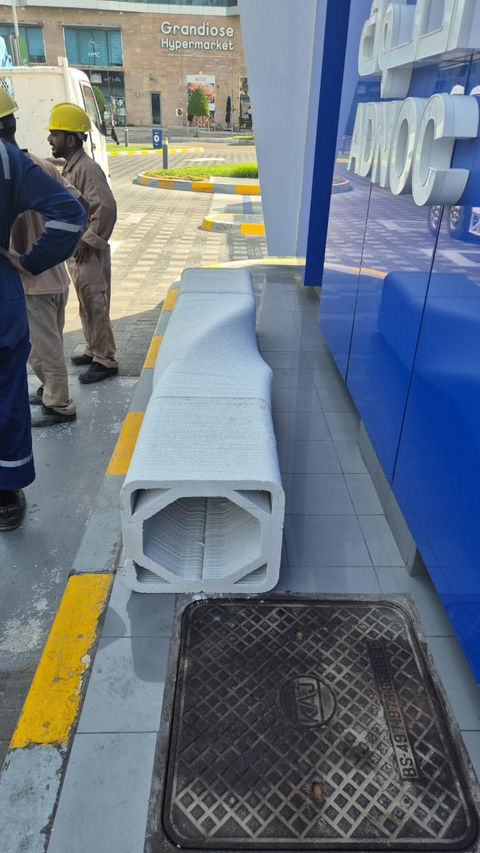

Projects 3D Printed with
TamVinci Printer
What’s Included in the System Package?
-
3DCP-2K Nozzle System
-
3DCP Concrete Pump System
-
Machine User Interface (MUI) – (ControlUnit)
-
Robotic Arm Extension (0.5/1.0m)
-
Slicing Software
-
Robot – with or without track (optional)
-
1-Week 3DCP Operations Training Program(online and onsite)
-
System Installation and Commissioning
-
After-Sales Technical Support
-
Nozzles and Hoses
-
Basic Spare Parts for initial operation andmaintenance
-
3D Printing Mortar and Additives (optional)
